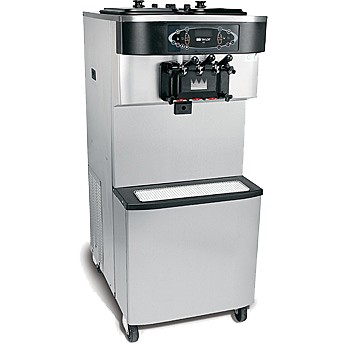

Taylor Soft Serve Ice Cream Machine Twin Twist C713

Product Code: C713

Availability:In stock

Taylor Soft Serve Ice Cream Machine Twin Twist C713



FREEZING CYLINDER

Two, 3.4 quart (3.2 liter)

MIX HOPPER

Two, 20 quart (18.9 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) during Auto and Standby modes.

INDICATOR LIGHTS

Digital readout displays hours since last brush cleaning to assure product safety. Mix Low light alerts operator to add mix. Audible alarm may be enabled to sound when mix is low. When the Mix Out light flashes, the unit shuts down automatically to prevent damage.

TOUCH SCREEN CONTROLS

Microprocessor touch controls are embedded in durable tempered glass panel. Multiple languages are selectable. Viscosity is continually measured to dispense consistent quality soft serve desserts. Temperatures in the hoppers or freezing cylinders may be displayed at any point of operation, in either Fahrenheit or Celsius. Draw counter allows operator to view number of servings dispensed.

STANDBY

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

TWO LOCKING CASTERS

Front casters have a locking feature for operators to keep equipment in place. The lock can be released to move the equipment for cleaning.

DOOR INTERLOCK SYSTEM

Protects the operator from injury as the beater will not operate without the dispensing door in place.

FREEZER DOOR

A specially designed thermo-plastic door allows quick ejection of product with a simple movement of the draw handle. Self closing draw handles are standard.

Beater Motor Two, 1.5 HP.
Refrigeration System Two, 9,500 BTU/hr. R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on compressor used.)

Air Cooled Minimum 3” (76 mm) around all sides. Install the deflector provided to prevent recirculation of warm air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

220v-240v 50hz 1ph

Left Right Amps R:19AMPS L:21AMPS

DIMENSIONS: DxWxH 36.3"x25.7"x60"
