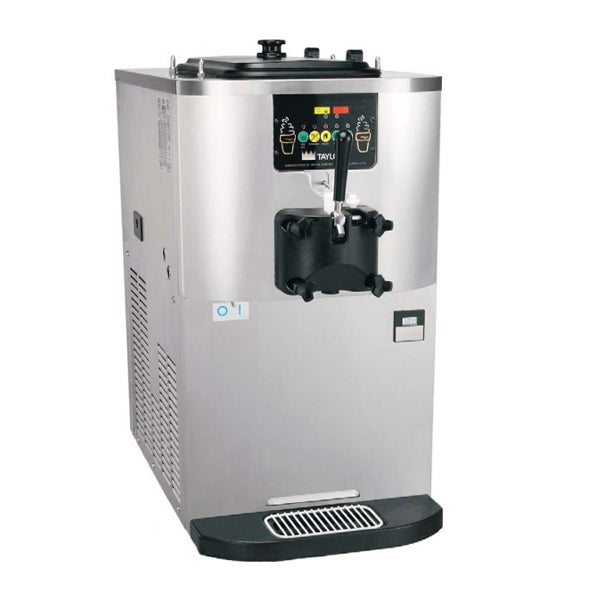

Taylor Soft Serve Ice Cream Machine Single Flavor/Pump C706

Product Code: C706

Availability:In stock

Taylor Soft Serve Ice Cream Machine Single Flavor/Pump C706



FREEZING CYLINDER

One, 3.4 quart (3.2 liter)

MIX HOPPER

One, 20 quart (18.9 liter). Simplified air/mix pump delivers the precise amount of mix and air to the freezing cylinder for consistent overrun. Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) during Auto and Standby modes.

INDICATOR LIGHTS

Mix Low light alerts operator to add mix. When the Mix Out light flashes, the unit shuts down automatically to prevent damage.

ELECTRONIC CONTROLS

Softech™ is our exclusive microprocessor based master control that regulates refrigeration by measuring product viscosity to maintain consistent quality.

STANDBY

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

DIGITAL TEMPERATURE CONTROL

Hopper temperature is displayed to assure safe product temperatures. Indicator may be switched from Fahrenheit to Celsius temperature display.

DOOR INTERLOCK SYSTEM

Protects the operator from injury as the beater will not operate without the dispensing door in place.

Beater Motor: One, 1.5 HP.
Refrigeration System: One, 9,500 BTU/hr. R404A.Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on compressor used.)

Dimensions: DxWxH 32.1"X18.1"X34"

220V-240V 50HZ 1PH 22AMPS

Fuse size 30
