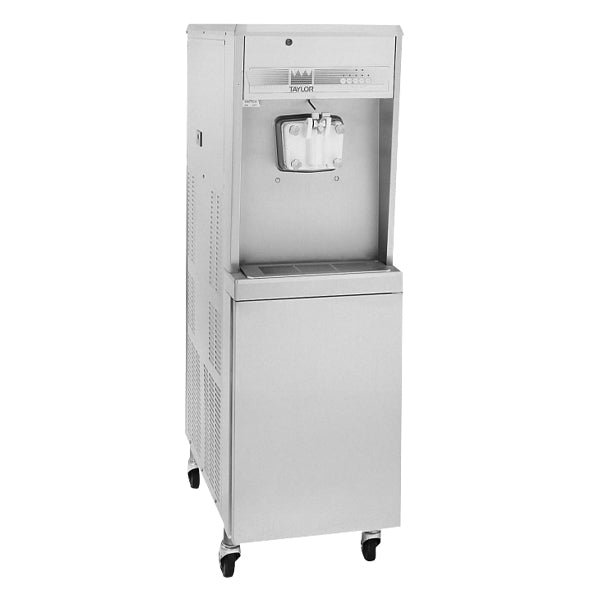

Taylor Soft Serve Ice Cream Machine Single Flavor/Pump 8752

Product Code: 8752

Availability:In stock

Taylor Soft Serve Ice Cream Machine Single Flavor/Pump 8752



FREEZING CYLINDER

One, 3.4 quart (3.2 liter)

REFRIGERATED MIX STORAGE CABINET

Lower front mix cabinet is independently refrigerated to maintain mix below 41ºF (5ºC). Door is hinged on the right. One, 15 gallon (57.0 liter) mix tank. Air/mix pump delivers the precise amount of air and mix to the freezing cylinder.

INDICATOR LIGHTS

Mix Low light alerts the operator to add mix. When the Mix Out light flashes, the unit shuts down automatically to prevent damage

ELECTRONIC CONTROLS

Finished product quality is monitored by Softech™ controls that measure viscosity.

STANDBY

During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

TWO LOCKING CASTERS

Front casters have a locking feature for operators to lock to maintain equipment in place. The locking casters can be released to move the equipment for cleaning.

DOOR INTERLOCK SYSTEM

Protects the operator from injury as the beater will not operate without the dispensing door in place.

Beater Motor One, 1.5 HP.
Refrigeration System One, 9,500 BTU/hr. R404A. Mix Cabinet Refrigeration, One, 1,100 BTU/hr. R404A. (BTUs may vary depending on compressor used.)
Air Cooled Minimum 3” (76 mm) around all sides and 12” (305 mm) on top. Minimum air clearances must be met to assure adequate air flow for optimum performance.
Water Cooled Water inlet and drain connections under side of base 3/8” FPT.

DIMENSIONS: DxWxH 36"X20.9"X62.15"

220V-240V 3PH 50HZ 21AMPS 1.5HP
