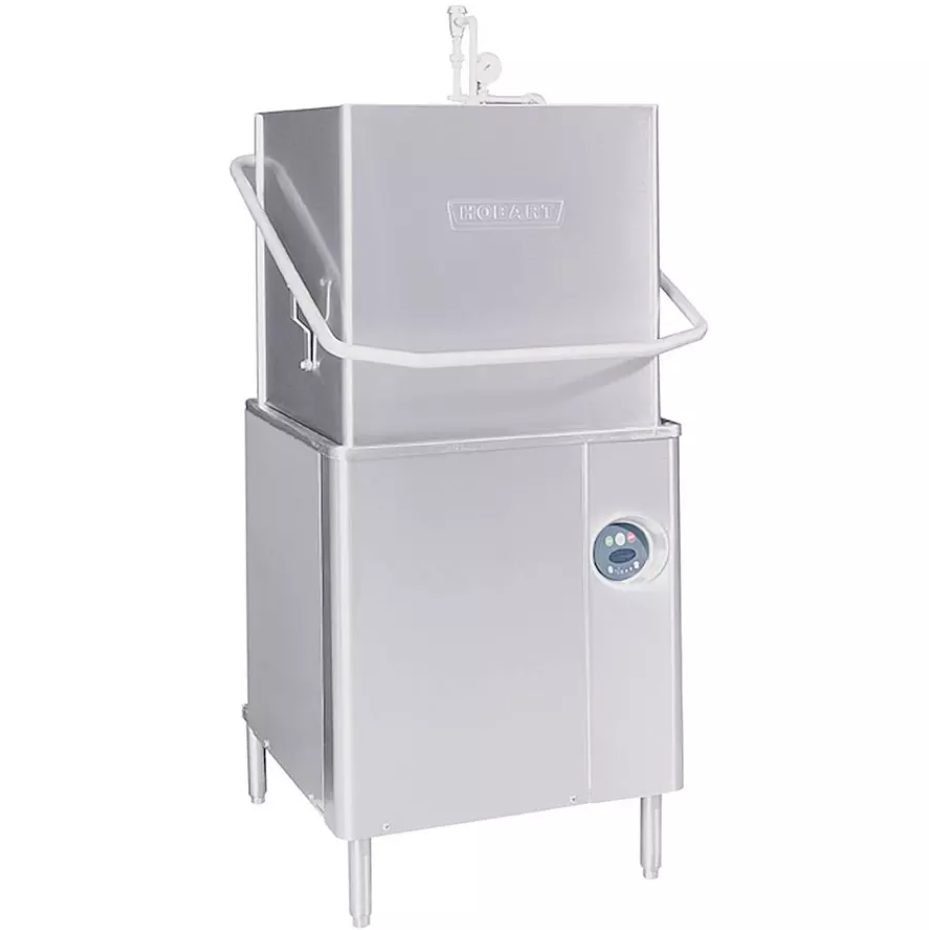

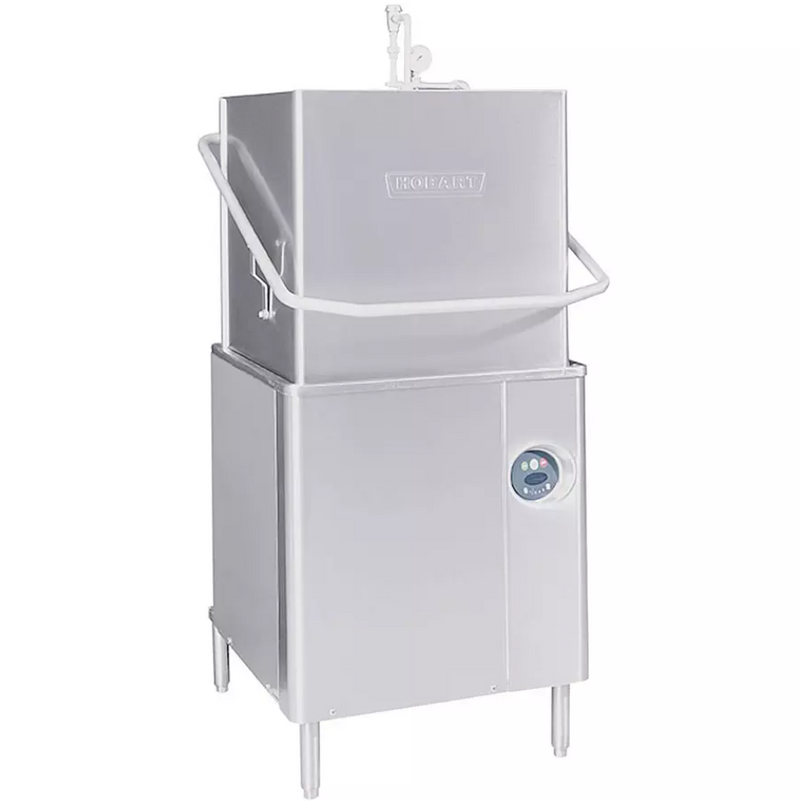

Hobart Low Temp Door Type Dishwasher W/ No Booster, 208V/1Ph Am15-5

HOBART Low Temp Door Type Dishwasher w/ No Booster, 208v/1ph AM15-5

Product features

• Uses high-temperature water or chemicals sanitizing methods
• Able to be used as a straight-through or corner machine
• 0.74 gal. of water used per rack
• 14-gal. wash tank
• 58-65 racks can be washed per hour depending on which sanitizing method is used
• 1-, 2-, 4-, and 6-min. wash cycles
• Digital indicators on the solid state controls
• NAFEM Data Protocol compliant
• Microcomputer controls the fill valve and uses a ratio fill method
• Lowering the chamber closes the automatic overflow and drain valve
• Vent fan control
• External booster activation
• Limescale buildup is reduced with the delime cycle
• 208-240 V/60 Hz/1 ph, 43 A, 2 HP, 5 kW
• Overall Dimensions: 27 in. W x 37¹⁄₂ in. D x 66¹⁄₂ in. H
• cULus listed; NSF and Energy Star certified
