Product Code: Y600
Availability:In stock

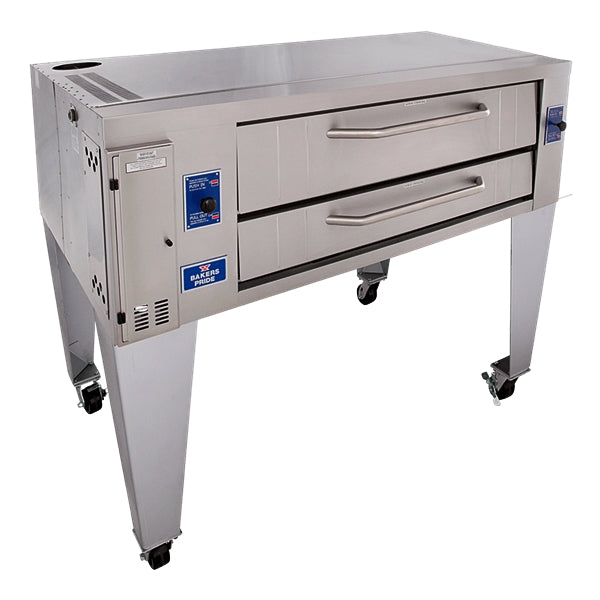

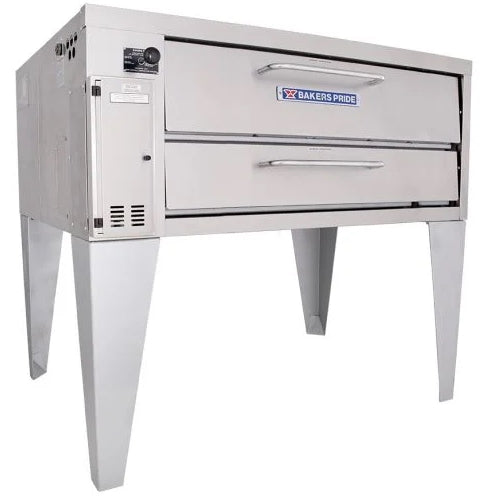

Bakers Pride Super Deck Y-Series Gas Deck Ovens are designed for high volume pizza and all-purpose operations. This model is constructed with heavy-duty, .25" angle iron frame, which is fully welded to allow for double-stacking or stacking under an Il Forno Classico. The oven chamber features a Lightstone fibrament deck with 8" deck height and independently controlled top and bottom heat dampers for perfectly balanced results.
Ovens may be stacked two high. Oven exteriors are all heavy- gauge, type 403 stainless steel and are fully insulated up to 5" (127mm) thick for cooler outer temperatures and consistent interior temperatures.
The interior oven frame is constructed of 1/4" (6mm) heavy-duty angle iron frame, completely welded to form a single, unitized section. The oven body and lining are then welded to the framework.
Oven interiors are manufactured of high-heat resistant 16-gauge aluminized steel. Doors are fully insulated, spring balanced with tubular steel handles and will remain open or closed until moved.
All models feature independent, operator-controlled top & bottom heat control dampers and micro slides for perfectly balanced results.
Y Series features a 300°-650° F (149°-343°C) throttling thermostat, 8" (203mm) interior deck height with 1 1/2" (38mm) thick hearth baking decks (steel decks optional) and are supported by a 1/4" (6mm) angle iron frame.
Combination gas control incorporates a manual gas valve, pilot safety, and pressure regulator. Easily removable, slide-out, heavy-duty flame diverters distribute the burner flame uniformly in the burner chamber. A 3/4" (19mm) NPT gas connection is located on the left side and left the rear of the oven - operator/installer may choose.
Heavy-duty, 7-gauge hot rolled steel legs are standard and finished with durable Bakestone.
1 Year limited part and labor warranty standard.
Width | 78 Inches |
Depth | 43 Inches |
Height | 55 1/8 Inches |
Deck Width | 60 Inches |
Deck Depth | 36 Inches |
Deck Height | 8 Inches |
Door Type | Solid |
Gas Inlet Size | 3/4 Inches |
NSF Listed | Yes |
Number of Decks | 1 |
Power Type | Natural Gas |
Style | Deck Style |
Temperature Range | 300 - 650 Degrees F |
Total BTU | 120,000 |
Total weight: 1338 lbs.
Packaging Dimensions: 31" x 53" x 82"
