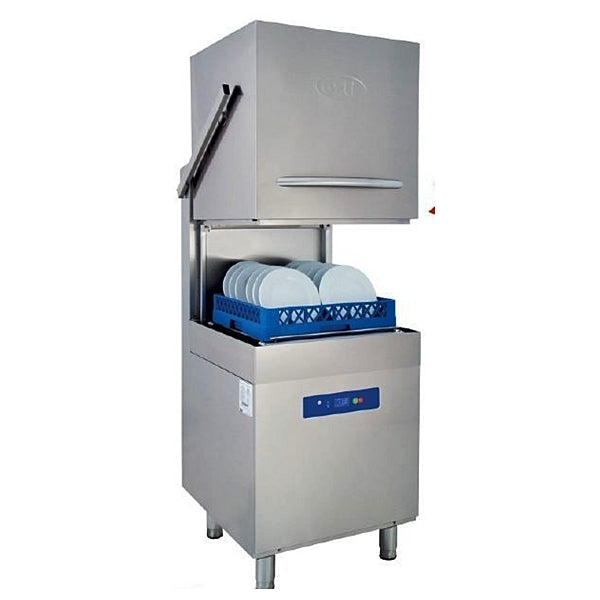

Stand Up High Temp Dishwasher-OBM-1080-PLUS

Product Code: OBM-1080-PLUS

Availability:In stock

$5,500.00 $4,295.00 4,295.00
  • Stainless Steel Body including washing and boiler tank

  • Monoblock washing tank with round corners - Hygenic

  • 69 racks per hour for OBM 1080 (Rack dimension 50x50)

  • 50 racks per hour for OBO 1000 EKO (Rack dimension 50x50)

  • 2.8 l water consumption per cycle

  • OBO 1000 EKO: Single washing program - Cycle 72 seconds

  • OBM 1080: 3 Selectable Washing Programmes - Cycle 52,102,132 seconds

  • Suitable for corners and in-line installations

  • Washing arms both available in stainless steel and reinforced polypropylene

  • Adjustable feet for height optimization

  • Electrical components and cabling according to international standards and safety regulations.
  • The dishwasher is completely sealed to guarantee IPX5 water protection

  • Non-return - Check valve System
  • Washing temperature at 55-60°C (water supply at a minimum of 2 bar and 50°C)

  • The rinsing temperature at 80-85°C (water supply at a minimum of 2 bar and 50°C)

Product Specs

Model OBM 1080
Electric connection  400 V 3NPE 50 Hz
Washing capacity (Plate/hr)  1080
Washing capacity (Basket/hr)  69
Washing water temp. 55-60 °C
Rinsing water temp.  80-85 °C (max.)
Washing program number  3
Water inlet connection  R 3/4 “
Washing pump power  0.66 kW
Rinsing pump power  0.37 kW
Water inlet pressure / Temp.  2 - 4 / 50°C
Heat power (Washing/Rinsing)  3 / 9 kW
Dirty water discharge connection  1 1/4” (Ø 42 mm)
Max. noise  85 dBA
Gross weight  115 (±5) kg
W x D x H 26'' x 31'' x 56''
Protection class IPX5
Warranty 1 year
