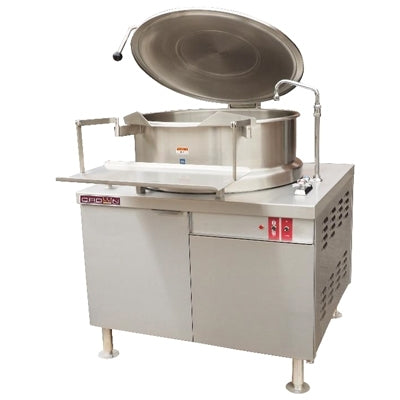

Crown Tilting Direct Steam Kettle DMT-60

Product Features

• Shall be a Crown Models, steam jacketed kettle models DMT, tilting type, or DMS,stationary type. Kettle shall be mounted in enclosed cabinet base and interior liner shall be 316 stainless steel for high acid content products.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle. The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• A steam control valve and hot and cold water, deck mount fill faucet shall be mounted on the stainless steel counter top. Kettle shall be equipped with 2” (50 mm) sanitary draw off with perforated strainer is enclosed in the cabinet for sanitary purposes.
• Steam trap and a safety relief valve are standard.
• Swing drain for draw-off valve shall be removable without tools and shall be equipped with removable strainer. DMS & DMT models shall include a one piece stainless steel spring assist cover.
• Cabinet base shall be of modular design to match other Crown cooking equipment as required and shall be equipped with 6” (152 mm) stainless steel legs with 4 adjustable flanged feet for securing to the floor.
• All stainless steel exterior, # 4 finish, with removable side panels and doors with magnetic latches.

Product Specs

• Power: 115v/ 60Hz/ 1PH
• WxDxH: 42''x33''x47.6''
• Weight: 600lbs
• Capacity: 50-70 gallon
• Base: Cabinet Base
• Kettle Liner: 316 Stainless Steel
